SK-2000A OPHTHALMIC A SCANNER
SK-2000AP OPHTHALMIC A SCANNER WITH PACHYMETER
An Ophthalmic A scanner is widely used in ophthalmology clinics, hospitals, and medical research centers around the world. It is an essential tool for the early detection of eye diseases such as glaucoma, cataracts, and corneal disorders. The Ophthalmic A scanner is also vital in the diagnosis and management of ocular conditions related to trauma, infection, and other medical conditions.
Features of SK-2000A
ACCURATE A-SCAN
Provides a precise ultrasonic frequency of 10MHz, ensuring deeper detection depth and higher image resolution.
MULTIPLE MEASUREMENT MODES
Includes six crystal modes, with automatic and manual methods to meet various clinical needs.
10 SETS OF OUTPUT DATA
Enables real-time automatic calibration, average value, and standard deviation calculations for more accurate measurement results.
ACCURATE PACHYMETER
Utilizes a high-frequency of 20MHz to ensure measurement accuracy.
6.5-INCH COLORFUL TOUCH SCREEN & BUILT-IN THERMAL PRINTER
Specifications
Ophthalmic A scanner(SK-2000A)
Frequency: 10MHz
Accuracy: Axial Length Measurement ≤ 0.05mm
Depth: ≥ 40mm
Propagation Velocity: 1641, 1532
Data Output: Cornea, Anterior Chamber, Lens, Vitreous, Axial Length
IOL Calculation: 6 common methods, Srk2, Srk/t, Binkhorst II, Hoffer Q, Hollady, Haigis
Default Eye Mode: Normal, Dense, Aphakic, PMMA, Silicone, Acrylic, Cataractous, and 2 Customized Modes
Measurement Method: Immersion or Contact Measurement Mode
Pachymeter
Frequency: 20MHz
Accuracy: Corneal Measurement ≤ 0.01mm
Depth: 0.15mm - 1.5mm
Propagation Velocity: 1640
Data Output: Corneal Thickness
Measurement Method: Contact Measurement Mode
Others
Gain: 99dB
Touch Screen: 6.5-inch Color
Display Resolution: ≤ 0.1mm
Output Information: 10-group Data, Average & Standard Deviation Calculation
Storage: 200 copies Exam Data
Print: Built-in Fast Thermal Printer
Related Products
![AB Scanner and Pachymeter]( "AB Scanner and Pachymeter")

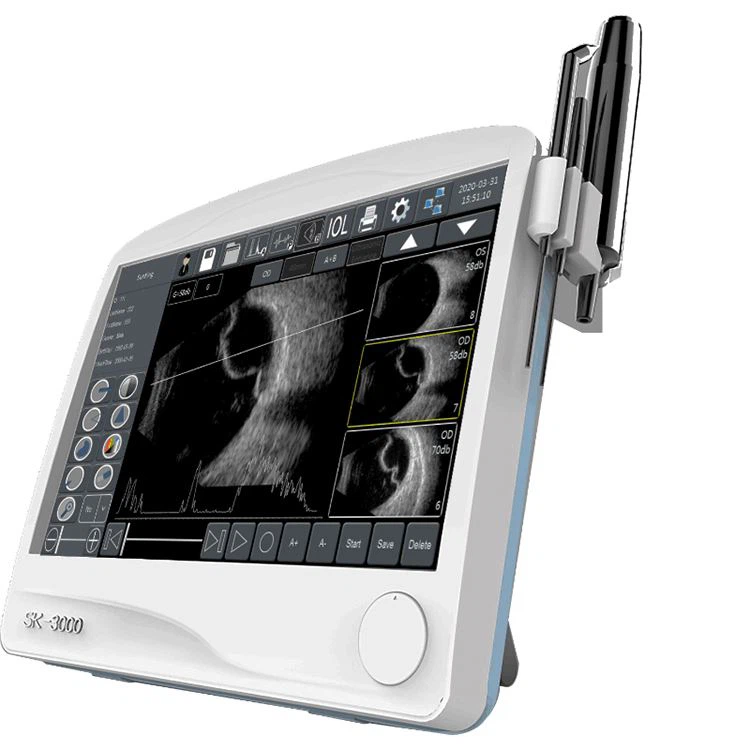

AB Scanner and PachymeterThe B probe utilizes a magnetic-driven design, which is vastly different from traditional mechanical transmission designs. It completely avoids medium temperature rise and chip vibration.![Ophthalmic A Scanner]( "Ophthalmic A Scanner")

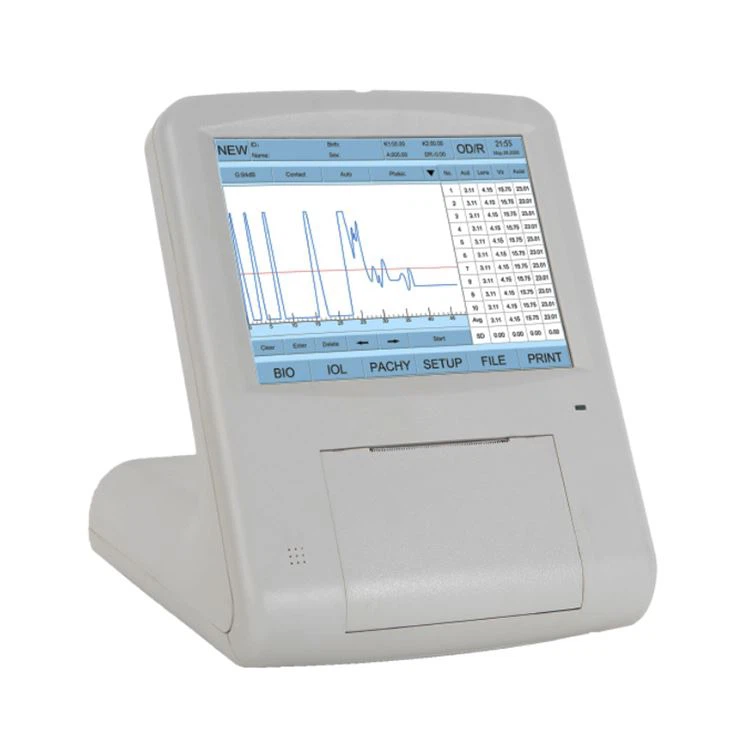

Ophthalmic A ScannerAn Ophthalmic A scanner is widely used in ophthalmology clinics, hospitals, and medical research centers around the world. It is an essential tool for the early detection of eye diseases such as glaucoma, cataracts, and corneal disorders. The Ophthalmic A scanner is also vital in the diagnosis and management of ocular conditions related to trauma, infection, and other medical conditions.![Ophthalmic Ultrasound Scanner]( "Ophthalmic Ultrasound Scanner")

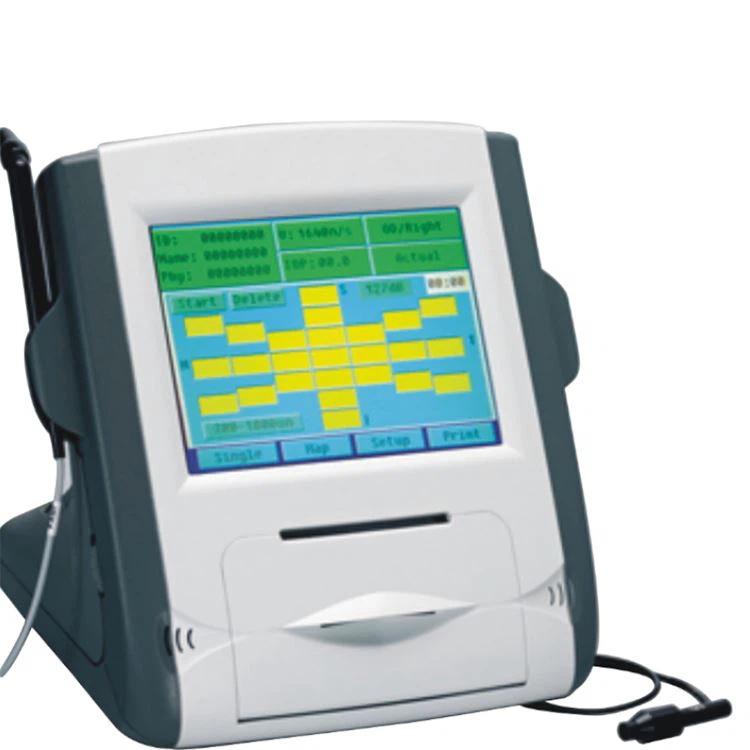

Ophthalmic Ultrasound ScannerThe ophthalmic ultrasound scanner can observe the depth of the anterior chamber and the thickness of the cornea. It can also measure the thickness of the lens and retina, helping to determine the presence and severity of turbidity in the refractive medium. This information assists in diagnosing vision loss, evaluating its severity, and detecting conditions like vitreous opacity or retinal detachment.
