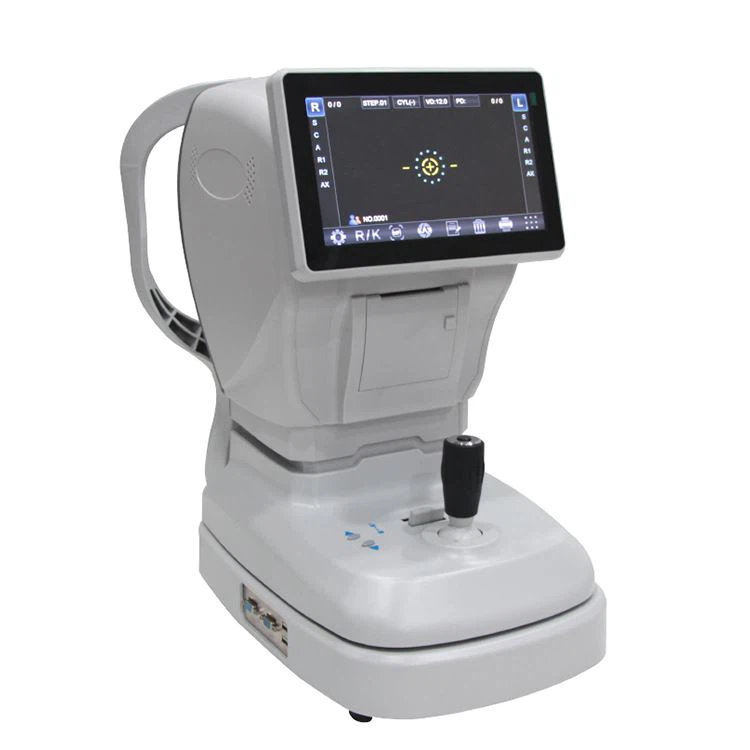

RK-160 9-INCH TOUCH SCREEN AUTO KEF-REFRACTOMETER
Auto horizontal, vertical, and back force motorized focus.
Touch screen auto refractometer, equipped with electric lifting chinrest.
High Speed and auto paper cutting thermal printer.
High definitions retina image with latest optics system, adapted high speed image acquisition and image identification
RM-160 and RK160 are equipped with a powerful processor, which is combined with the Hartmann-Shack wavefront technology. This technology is designed to measure the optical aberrations of the eye, thereby providing accurate results.
This autorefractor also has an automatic eye-tracking system that follows the patient's eye movement and positions the device correctly to take measurements close to the center of the pupil. This feature ensures accurate and fast measurements.
The 9-inch touch screen auto refractometer also performs two main functions. Firstly, it displays clear and concise instructions for the user, making it easy to operate the device. Secondly, the large display can be tilted up or down, thus making it convenient to view the results from multiple angles.
Specifications
1. VD Range: 0.0, 12.0, 13.75 and 15.0
2. Sphere Range：-20.00D~+20.00D (VD=12mm,0.01 ,0.06,0.12,0.25 Increments)
3. Cylinder Range:0.00D~土10.00D(0.06 ,0.12,0.25 Increments)
4. PD: 10-86mm
5. Mini Pupil Size: 2.0mm
6. Average Measurement Time :＜0.5 Sec.
7. Pupil Distance:2.00-8.00mm
8. Max Brightness: ＜30uw (Safety Assure)
9. Refractive Power: 33.00D~67.00D (At a corneal equivalent refraction of 1.3375)
10. Cylindrical Power: 0.00D~-15.00D (0.06D/0. 12D/0.25D Increments)
11. Date Save: 10 Group Left/Right Eye
12. Axis：1°~180°
13. Target：Auto Fog
14. Monitor：9 Inch TFT Touch Screen (Flip)
15. Printer: 57mm Width, Auto Cutting thermal printer
16. Power: AC 100~250V，50/60Hz, Wide Voltage
17. Dimension: 526(L)*268(W)*468(H)mm
18. Net Weight:22Kgs
19. Gross Weight:26 .5Kgs
20. Packing: 680(L) X 400(W) X640(H)mm
Related Products
![Big Screen Autorefractor Keratometer]( "Big Screen Autorefractor Keratometer")

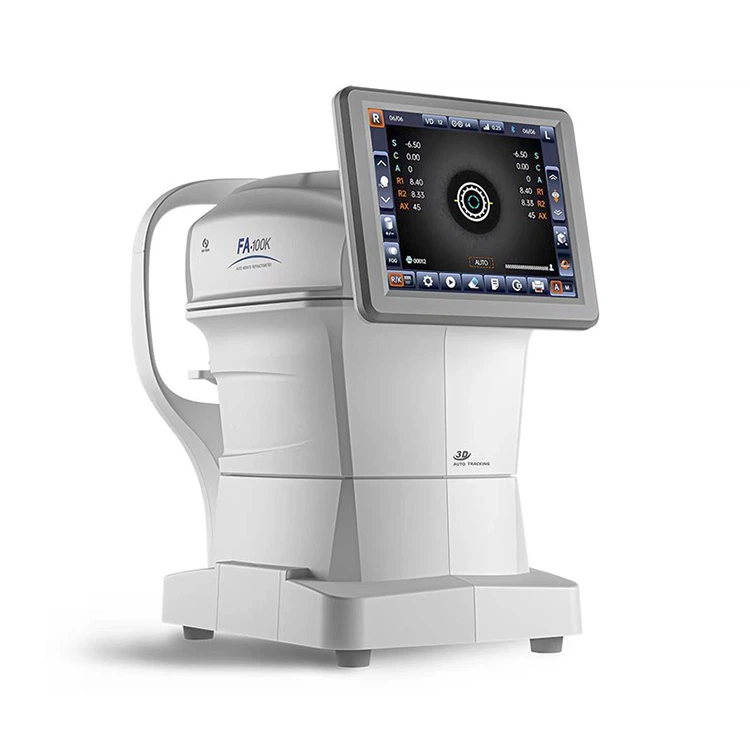

Big Screen Autorefractor KeratometerFA-100K is one of the top products among the new fully autorefractor keratometers. It is equipped with an advanced rotary prism optical system, which offers fast measurement speed, accurate results, and exquisite overall workmanship.![Auto Refractometer with Keratometer]( "Auto Refractometer with Keratometer")

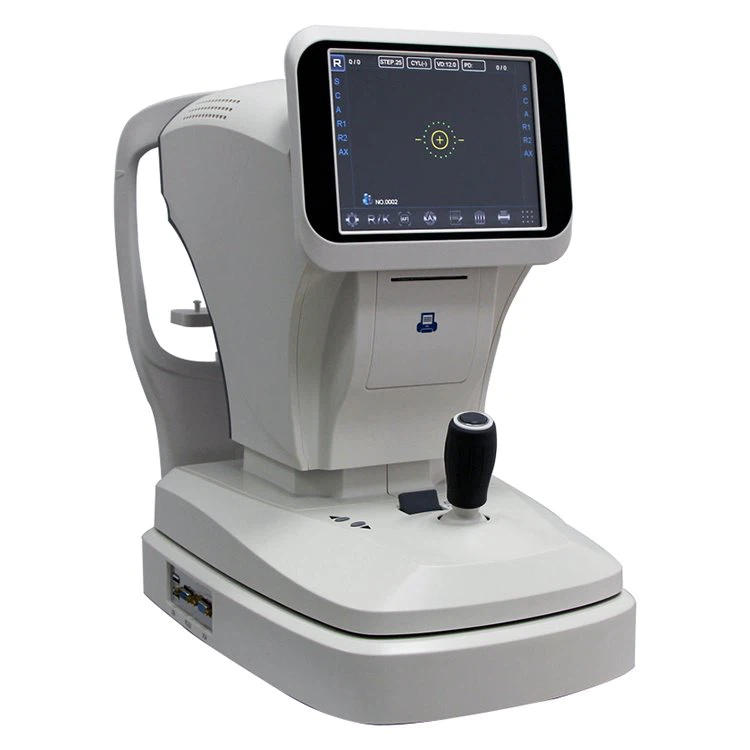

Auto Refractometer with KeratometerAn auto refractometer is a diagnostic machine commonly used by eye doctors to measure the refractive error of the eye. It is a useful tool for determining the appropriate prescription for contact lenses or eyeglasses. This auto refractometer uses 8” TFT Touch screen and the monitor is flip. Electric chin-rest lifting, the optometrists could adjust the chinrest height easily.![9 Inch Touch Screen Auto Refractometer]( "9 Inch Touch Screen Auto Refractometer")
