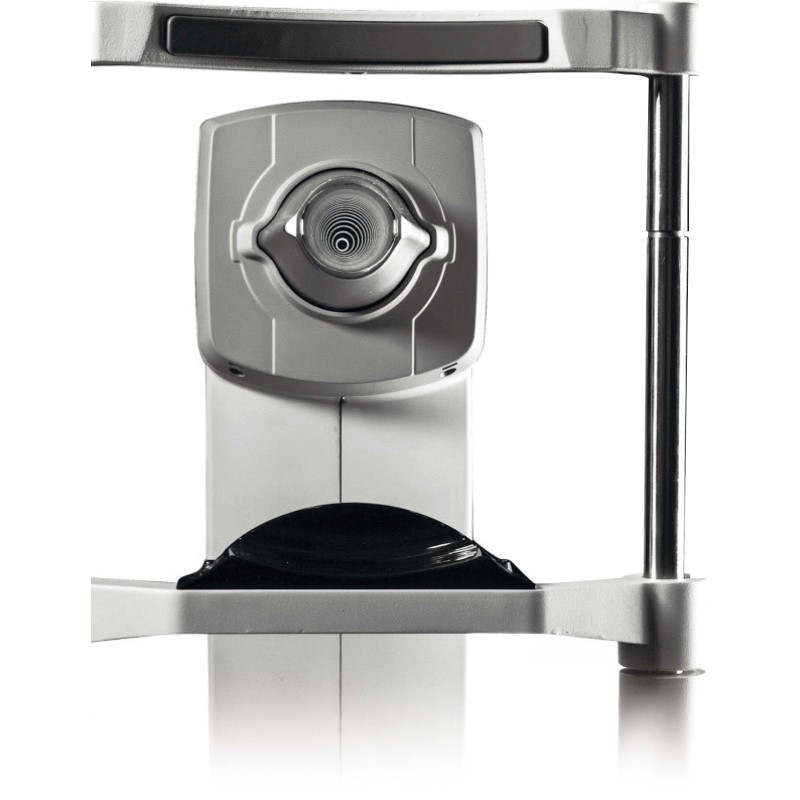

SW-6000 COMPUTERIZED CORNEAL TOPOGRAPHY SYSTEM

SW-6000 computerized corneal topography system is a highly advanced diagnostic tool used in the analysis of corneal curvature and astigmatism. The device utilizes PLAIDO technology with a cone-shaped design consisting of 31 rings and 7936 points for a more precise and comprehensive examination of the cornea.

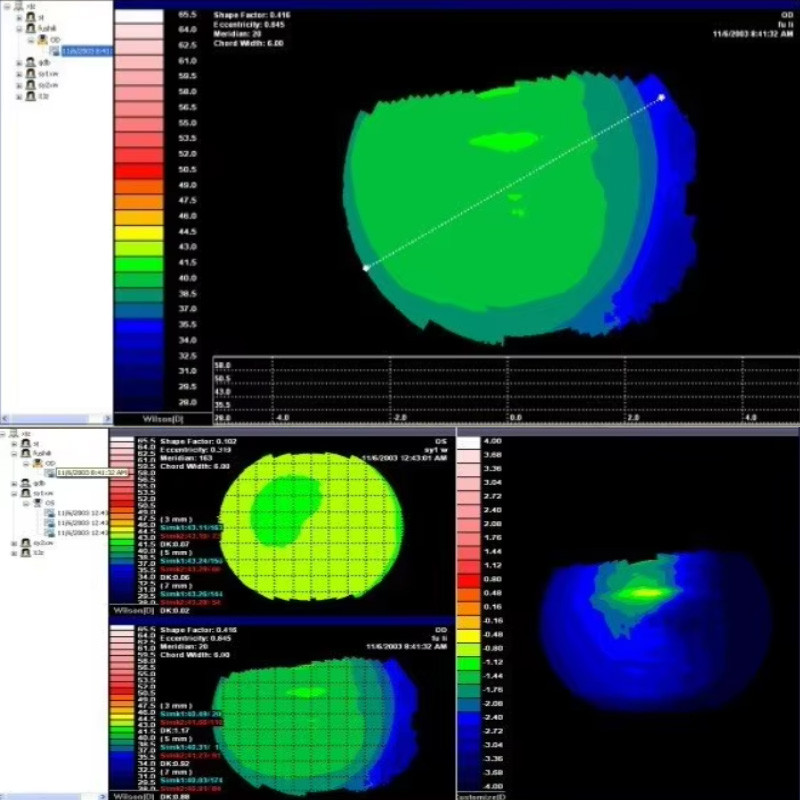

The device displays the axial curvature map, tangential curvature map, height map, simulated keratogram, and 3D corneal map, providing a detailed and complete analysis of the cornea. This makes it an essential tool for pre and post-operative evaluations of corneal refractive surgery.

It is ideal for use in clinical settings when diagnosing corneal astigmatism and evaluating the shape of the cornea. The data of this computerized corneal topography system can be displayed in different colors to show the curvature of the cornea, which can be used to improve the accuracy of contact lens fitting.
Specification
Measuring method
Placido cone
Coverage range of measurement
10.91mm (Diameter)
Measuring range for curvature radius
5.5mm-10.0mm
Diopter range
33.75D-61.36D
Precision
±0.02mm
Placido rings
31 rings
Measurement points
7,936 points
Display
Axial Curvature map, Tangential Curvature map, Elevation map, imitated keratoscope map and 3D cornea map.
Image output
High quality color inkjet printer.
Adjust range
Left/right>86mm
forward/backward>40mm
up/down>30mm
chinrest>50mm
Function
Cornea contact lenses fitting function
Keratoconus detecting function
