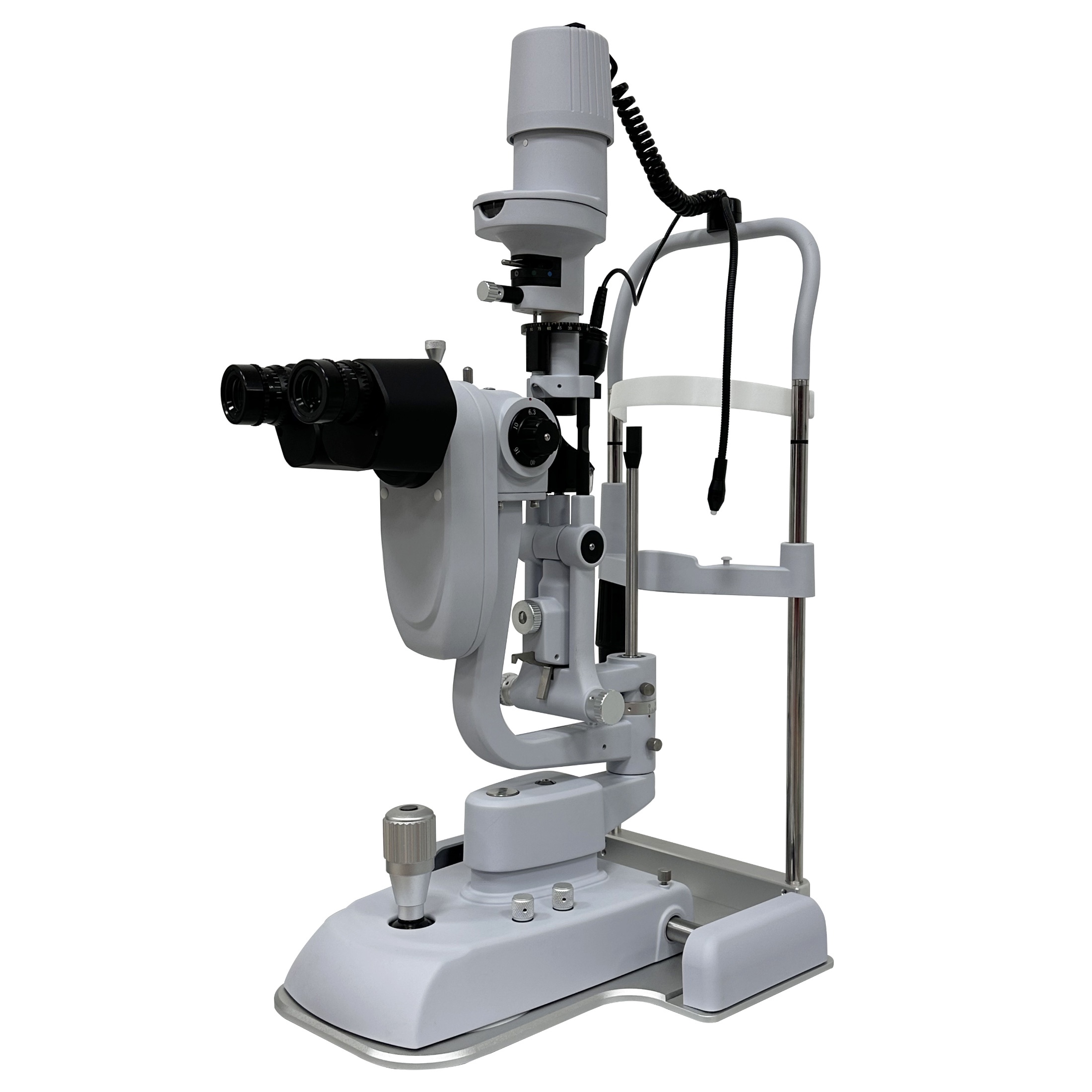

Name: FSL-5C 5 Steps Maginification slit lamp with Built-in CCD Camera
SKU: 0





Tel





Products

FSL-5C 5 Steps Maginification slit lamp with Built-in CCD Camera

Description

Specification

Microscope Type	Galilean System
Magnification Changer	Revolving Drum
Eyepiece Magnification	12.5X
Slit Width	0mm～14mm Continuously Adjustable
Slit Length	1mm～14mm Continuously Adjustable
Slit Angle	0～180°Continuously Adjustable
Filter	Heat Aborption, Grey, Redfree (Green), Cobalt Blue
Light Source	Warm LED
Magnification	6.3X,10X,16X,25X,40X
Diopter	±7D
Pupil Range	52mm-85mm
Visual Field Diameter	6X:33mm；10X:22mm；16X:14mm；25X:8.5mm；40X:5.5mm
Illumination Type	Haag-Streit Type
Illumination Tilting	5°,10°,15°,20°
Slit Aperture Size	φ0.2，φ1，φ3，φ5，φ10，φ14（mm）
