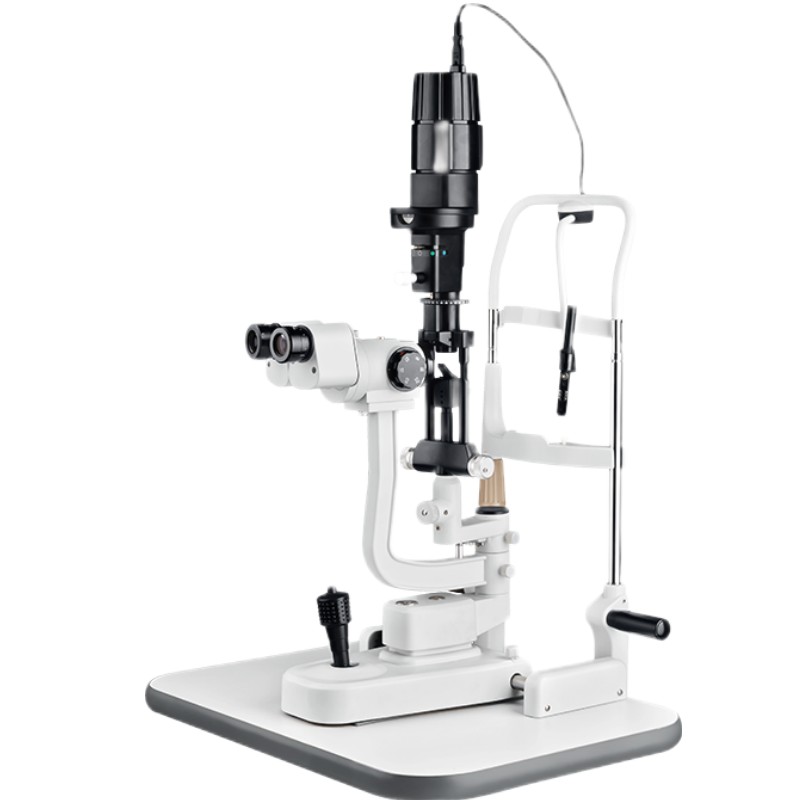

Name: 2 Steps BL-66 Ophthalmology Slit Lamp Microscope
SKU: 0





Tel





Products

2 Steps BL-66 Ophthalmology Slit Lamp Microscope

Description

Specification

Microscope type:	Converging stereoscope microscope
Magnification changer:	2 steps by objective lens rotation
Total magnification:	10X, 16X
Ocular magnification:	10X
Inter pupillary distance:	50mm to 82mm
Ranger of adjusting eyepieces:	+5D to -5D
Object image field Ø in mm:	18mm(10X), 14.5mm(16X)
Slit image width:	0～9mm continuous (slit becomes a circle at 9mm)
Slit image length:	1～8mm continuous
Light source:	12v/50w halogen lamp
Slit image radial range:	0～180° adjustable
Filters:	Heat aborption, grey, redfree(green),cobalt blue
Light spot Ø in mm:	0.2mm, 1mm, 2mm, 3mm, 5mm, 8mm, 9mm
Fixation lamp:	Red LED
Range of adjustment:	110mm(side) 90mm(depth) 30mm(height)
Fixation:	Red led
Chinrest adjustment:	80mm
Input voltage:	AC 220v/110v ±10%
Input frequency:	50Hz/60Hz
Output power:	68VA
Dimension	690mm X 440mm X 420mm
Gross weight:	18kg
