Ophthalmic Ultrasound AB Scanner SAB-500 Ophthalmology AB Scan

Description

Specification

B Scan Specification
Probe Frequency	10MHz/20MHz (optional) ,Magnetic driven, noiseless
Scanning Method	Sector Scanning
Scanning Angle	53 Degree
Gain	30-105dB Adjustable
Magnify	Multi continuous magnification,Real-Time magnification
Resolution	Lateral ≤0.3mm; Vertical≤0.2mm
Geometry position precision	Lateral ≤10%; Vertical≤5%
Depth	60mm
Gray Scale	256
False Color	Multi colors. OCT

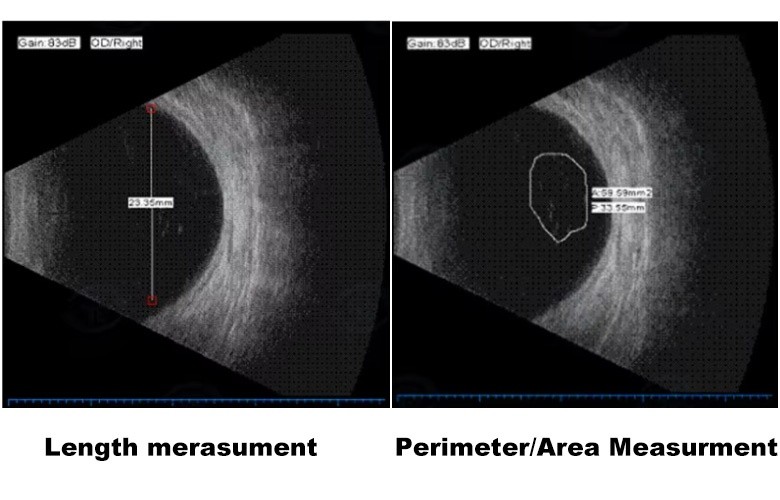

Measurement type	multigroup distances, perimeters and areas
Image postprocessing	multiple curves processing, Pseudo-color processing curve
Movies	100 images movie review, AVI JPG format image output
A Scan Specification
Probe Frequency	10MHz, with LED
Depth	40mm
Precision	±0.05 mm
Measurement	Anterior chamber depth, lens thickness, vitreous body length, total length and average
Eye mode	Phakic / Aphakic / Dense / Various IOL
IOL Formula	SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS
Stat. Calculation	Average and standard deviation
Store	10 Scanning results for each eye
Others

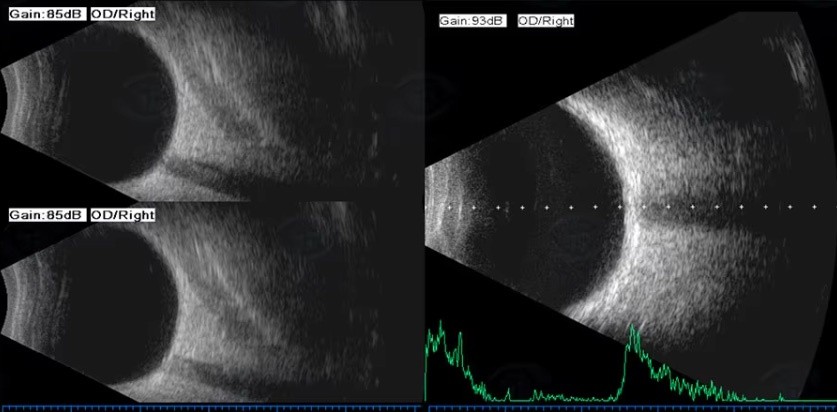

Display Mode	B, B+B, B+A, A
Hint	preset keyword
Case Search	Multi-keywords
Screen	15 inch LCD
Built-in battery	can use 4 hours
