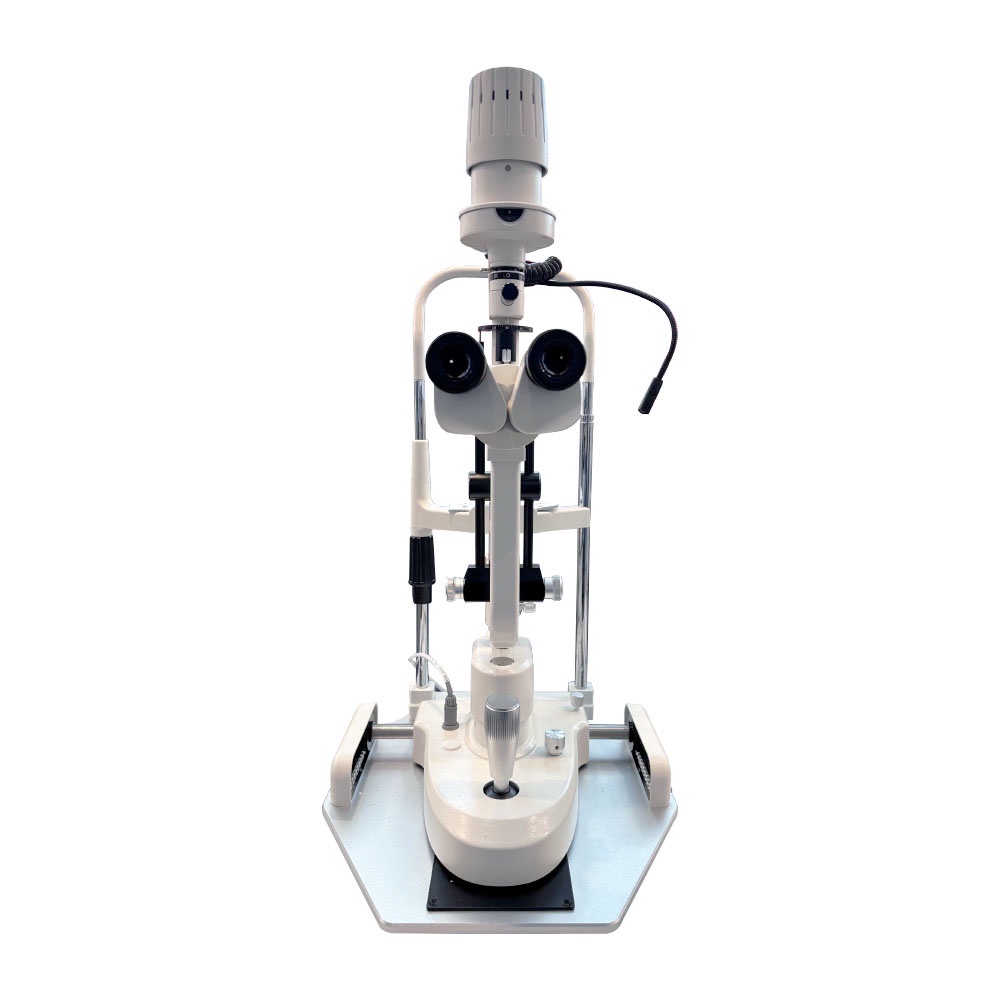

Name: ML-350 Ophthalmic Slit Lamp 5 Steps Magnifications
SKU: 0





Tel





Products

ML-350 Ophthalmic Slit Lamp 5 Steps Magnifications

Description

Specification

Microscope
Microscope Type		Galilean Parallel Angle
Magnification Change		Revolving Drum 5 steps
Total Magnification		6.3X,10X,16X,25X,40X
Eyepieces		12.5X
Angle between Eyepieces		13°
Pupillary Adjustment		52mm-80mm
Diopter Adjustment		-7D-+7D
Field of View		036.2mm,Ø22.3mm,Ø14mm,O8.9mm,Ø5.7mm
Sit illumination
Slit Width	0-14mm continuous(slit becomes a circle at 14mm)
Slit Length	1-14mm continuous
Aperture Diameters	014mm,Ø10mm,Ø5mm,O3mm,Ø2mm,Ø1mm,Ø0.2mm
Slit Angle	0°-180°
Slit Inclination	5°,10°,15°,20°
Filters	Heat-absorbing filter,ND filter,Red-free filter,Cobalt Blue filter
Lamp	3V LED Module
Luminance	≥140KLX
Power Supply
Input Voltage	110V~220V
Input Frequency	50Hz/60Hz
Input Power	120VA
Packaging
Dimension	750mm x430mmx530mm(L/W/H)
Gross weight	23kg
Net weight	19kg
System Specifications
Image Sensor	18 Mega Pixels
Photo Resolution	4096×3072
Format	JPEG
Video Resolution	2592×1944
Frame of Video	25fps
Video Formats	MP4
Exposure Mode	Automatic exposure
