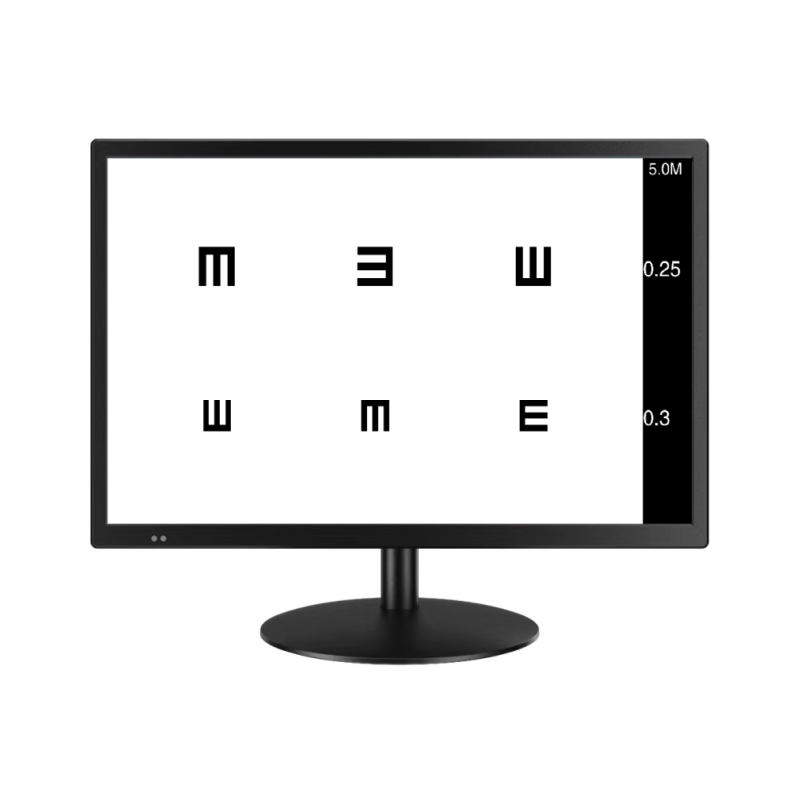

Professional ACP350 LCD vision screen with 21.5" matte IPS display. Features multiple optotypes, adjustable brightness/contrast, and remote control app. Ideal for eye clinics.
1. Optotypes charts: Tumbling E, Landolt C, Alphabet, Numbers, Children 2. Special functional charts: Ishihara, ETDRS, Cross cylinder, Astigmatic fan dial, Fixation spot, Cross grid, Contrast test, Horizontal coincidences, Vertical coincidences, Red & green balance, R&G mask, Black/White background etc. 3. The random presentation of optotypes could abolish memorization problems 4. The brightness of background and charts could be adjusted. 5. The contrast of the optotypes is adjustable. 6. Red/Green mask color could be adjusted to match various types of red and green glasses. 7. ETDRS includes an indicator stick function(optional). 8. The software could be upgraded by USB 9. Remote control APP is available on Android phone.
Specification
Monitor:
21.5-inch Matte IPS display
Resolution: 1920*1080
Working Distance:
2m-6.5m (If use the mirror function, 1m distance could be achieve)
Visual Unit:
Decimal: 0.04 to 2.0
Snellen(ft): 20/500 to 20/10 (20/XX)
Snellen(m): 6/150 to 6/3 (6/XX)
Snellen(m): 5/130 to 5/2.5 (5/XX)
5-Grade: 3.6 to 5.3
LogMAR: 1.4 to -0.3
Charts Shifting Speed:
0.1 second
Power Supply:
AC100V-240V, 50/60HZ
Input: 60VA
Remote Controller:
IR remote controller
Bluetooth (APP, only available on Android phone)
Weight:
2.75KG (N.W.)
Dimension:
508(W)x43(D)x305(H)mm
Power:
60VA
Standard Accessories:
Remote Controller, Wall Bracket, Power Cable with AC-DC Adapter, Desk Support
