C901 Vision Chart

Discover the C901 Vision Chart with a 17-inch LED screen, advanced CNT test technology, and multiple optotype options for precise visual assessments.

Description

Features:

17 inch LED backlit screen
New CNT test, which is more scientific, effective, and directive. CNT curve will be formed and displayed on the screen
when the test is finished.
Better user experience--- All tests icons are listed on home interface.
Quick test list--- Pick ten or less frequently used tests to establish your own quick test list.
V style optotype arrangement--- Avoid optotpyes congested on the screen.
Excellent programming give full play to the features of CPU

Specification

Screen	Type	17-inch XGA panel with long-lasting backlight
	Resolution	1280*1024 pixels
	Brightness	160cd/m²(min)

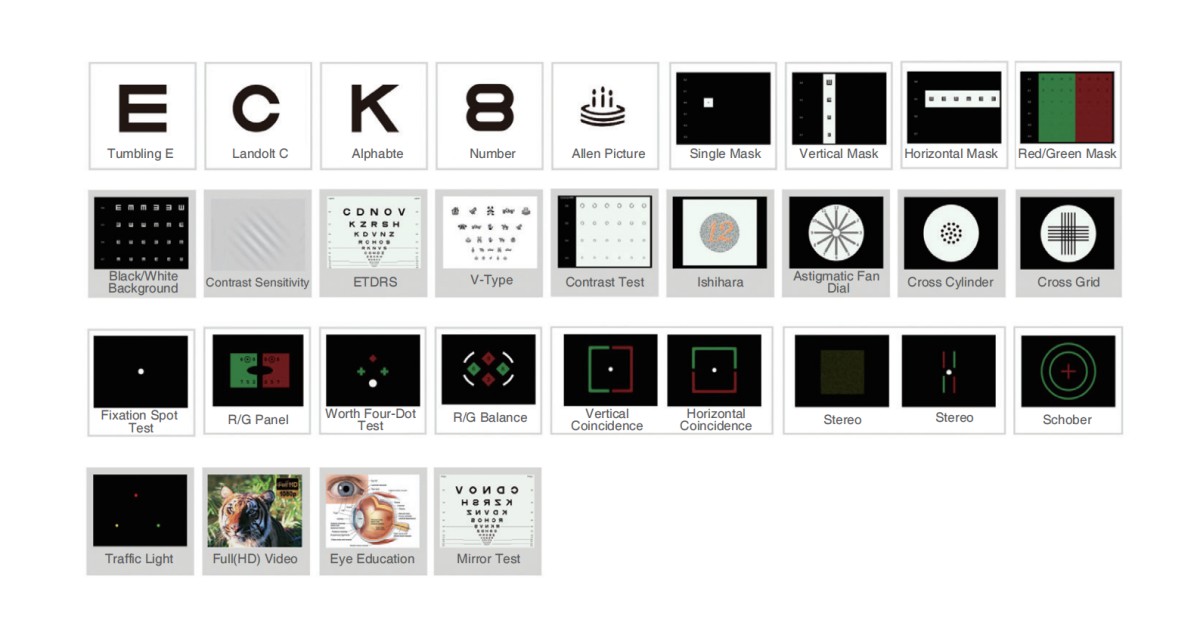

Charts	Optotypes	Tumbling E, Landolt C, Alphabet, Numbers, Children
	Mask type	Single Mask, Horizontal Mask, Vertical Mask, White/Black Mask, Red/Green Mask
	Special chart	ETDRS, Contrast Sensitity Test, Contrast Test, Ishihara, Cross Cylinder, Astigmatic Fan Dial, Cross Grid, Fixation Spot Test, Stereo Test, Red/Green Panel, Worth Four-Dot Test, Red/Green Balance, Street Lamp, Horizontal Coincidences, Vertical Coincidences, Schober
Other functions	Video playing, Audio playing, Randomization Optptypes playing, Mirror function, Screen Saver function, Standby function
Visual Unit	Decimal	0.04~2.0
	Snellen (ft)	20/500~20/10
	Snellen (m)	6/150~6/3
	LogMAR	-0.3~1.4
	5-Grade	3.6~5.3
Working Distance	2m ~ 7m (in steps of 0.1m) 6ft ~ 24ft (in steps of 0.5ft)
	Low vision chart: 0.6~1.5m, 0.1m/step
Power Supply	Input	AC220V ~ 230V ±10%, 50/60HZ
	Consumption	20w
Remote Controller	IR Remote, 2*AAA Batteries
Standard accessories	Remote Controller, Wall Bracket, Desk Bracket, Red/Green Glasses, Opyotypes Card, Power Cable, AC-DC Adapter
Optional accessories	Desk support, Ground Support
